Introduction
301F1E5 is an industrial-grade computing device equipped with the Ascend 310P chip, delivering up to 176 TOPS AI compute. The device features a robust and compact design, with abundant I/O interfaces and key interfaces equipped with electrostatic protection capabilities.
It combines high computing density, high performance ratio, high reliability and low cost advantages, and is specifically designed for edge AI inference scenarios such as smart parks, machine vision, security patrols, and vehicle-road collaboration.
Specifications
Processor
AI310SM Module（Ascend 310P）
AI Compute
176 TOPS INT8
CPU
ARMv8.2 16core TaishanV200M@max. 1.9 GHz
Memory
48 GB 256bit LPDDR4X
Storage
128G EMMC
Video Encoder/Decoder
JPEG Encoder/Decoder
Video Encoder: 24x 1080P@30fps/3x 4K@60fps (H.264/H.265)
Video Decoder: 96x 1080P@30fps/12x 4K@60fps (H.264/H.265)
JPEG Encoder: 4K@192fps (FHD@1024fps)
JPEG Decoder: 4K@384fps (FHD@2048fps)
supports up/down scaling, crop, Chroma up/down sampling, color space conversion（FHD 4320FPS）
Display
1x HDMI(option)
USB
4x USB 3.0 Type-A
Network
6x Gigabit network
(5x RJ455+ 1x FC )
Button
1x Reset
Expansion
2x miniPCIe
1x M.2 KEY M(2280)
1x M.2 KEY M(2242)
1x M.2 KEY B(3050)
1x nano SIM
2x SATA(power supply)
Function Signal
2x CAN，2x RS485，2x AUDIO OUT
Serial Port
1x RS232
Operating Temperature
-40℃~+65℃
Dimensions
225mm*218mm*75.5mm
Input Voltage
DC 9V~36V
Weight
2200g
Power
<140W
OS
openEuler(22.03)

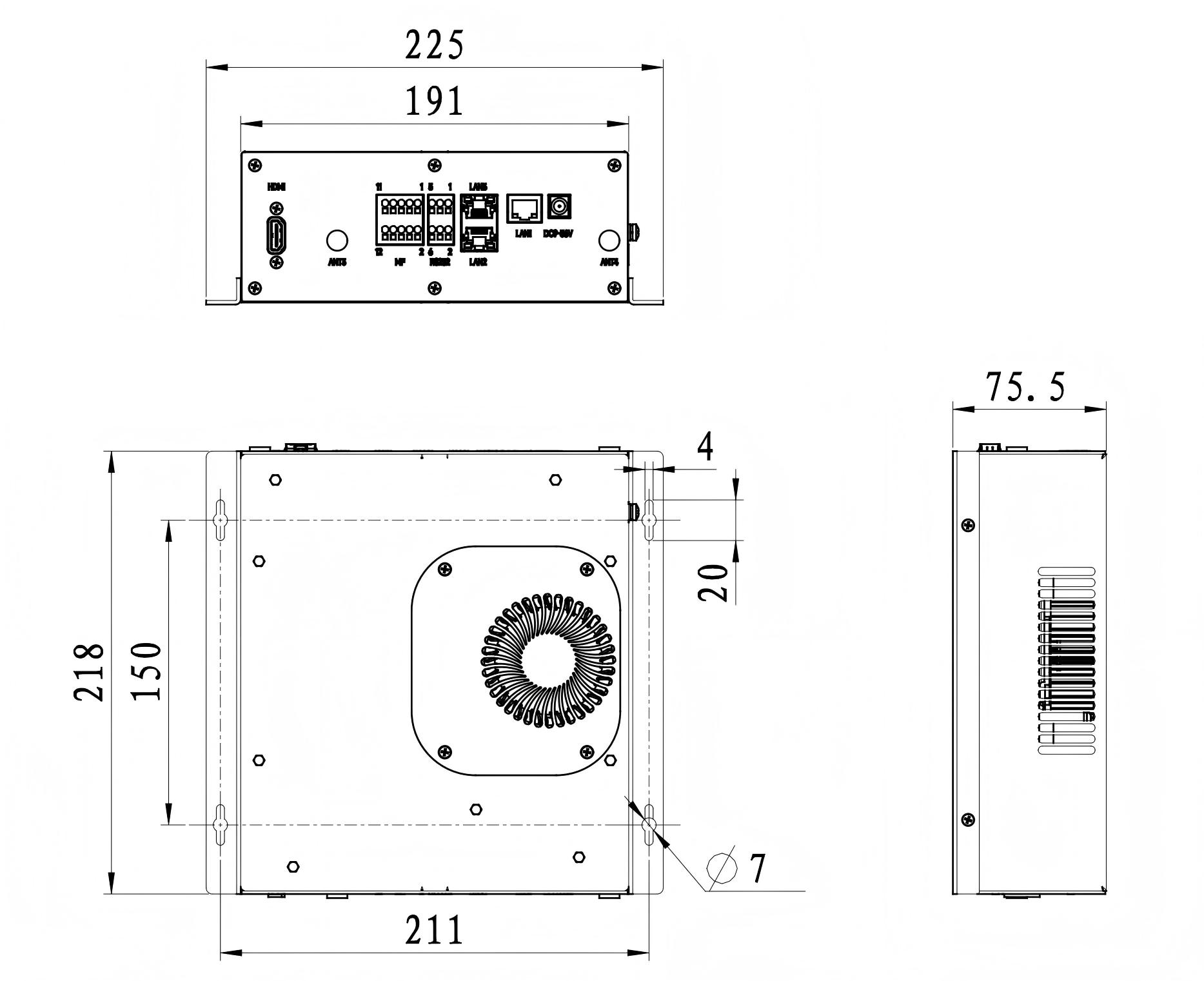

Dimensions
